Energy-Saving EPS Foam Sandwich Wall Panels for Roofing & Exterior Walls

Product Introduction

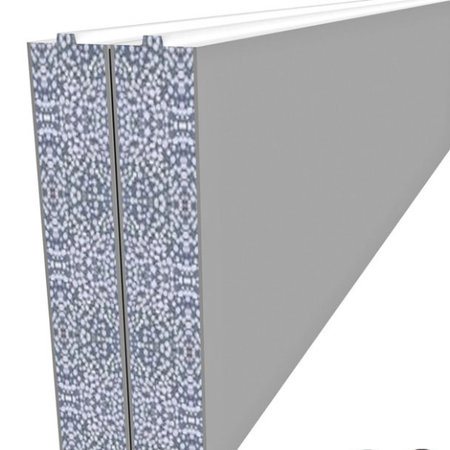

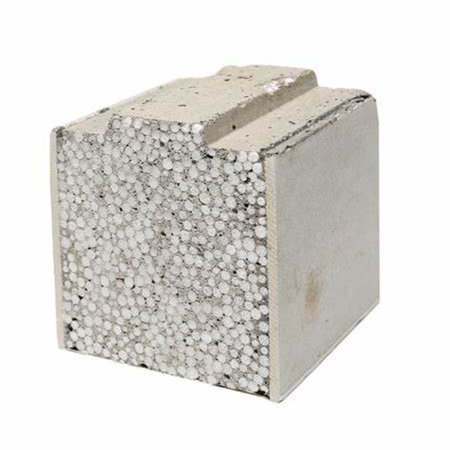

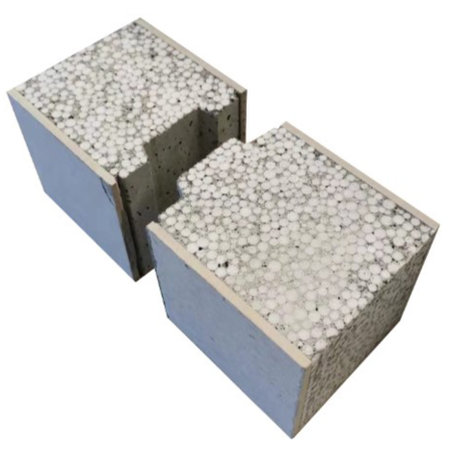

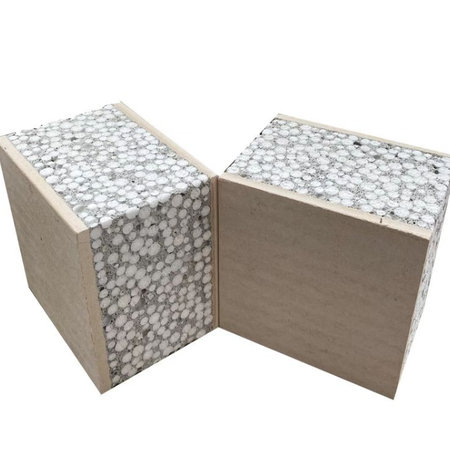

Our EPS (Expanded Polystyrene) Foam Sandwich Panels are engineered for superior thermal insulation, lightweight durability, and rapid installation—making them the ideal choice for modern energy-efficient roofing and exterior walls. These panels feature a three-layer composite structure: high-strength outer surfaces (metal/cement fiber) bonded to a fire-resistant EPS foam core, delivering exceptional heat preservation, soundproofing, and weather resistance. Perfect for residential, commercial, and industrial projects seeking cost-effective, eco-friendly building solutions.

Technical Specifications

Parameter Value / Description Testing Standard
Panel Thickness 50mm, 60mm,75mm, 100mm, 120mm, 150mm,200mm (customizable) ASTM C1289
Panel Size 1200mm × 2400mm (standard), up to 6000mm length ISO 8335
Density (EPS Core) 18-30 kg/m³ ASTM D1622
Compressive Strength ≥0.15 MPa (EPS core) ISO 844
Thermal Conductivity 0.033-0.038 W/(m·K) ASTM C518
Fire Rating Class A (Non-combustible) ASTM E84 / EN 13501-1
Sound Insulation 40-45 dB (for 100mm panel) ISO 10140
Water Absorption ≤10% (by volume) ASTM C272
Bending Strength ≥5 MPa (full panel) ASTM C393
Weight 15-25 kg/m² (depending on thickness)

Key Advantages

  1. Ultra-Lightweight – 50% lighter than traditional materials, reducing structural load and labor costs.
  2. Energy-Efficient – EPS core minimizes heat transfer, cutting heating/cooling costs by up to 40%.
  3. Fireproof & Safe – Class B1 fire rating (ASTM E84) with self-extinguishing foam core.
  4. Weather-Resistant – Withstands extreme temperatures (-30°C to +80°C), UV rays, and moisture.
  5. Noise Reduction – 30dB+ sound insulation for quieter interiors.
  6. Easy Installation – Prefabricated panels install 3x faster than conventional materials.
  7. Eco-Friendly – Recyclable materials, compliant with LEED & BREEAM standards.

Applications

  • Residential – Roofing, exterior walls, balconies, and prefab homes.
  • Commercial – Offices, shopping malls, hotels, and cold storage facilities.
  • Industrial – Warehouses, factories, cleanrooms, and logistics centers.
  • Green Buildings – Solar panel roofs, passive houses, and eco-communities.

Comparison vs. Traditional Materials

Feature EPS Sandwich Panel Brick Wall Concrete Panel
Weight (kg/m²) 15-25 180-220 200-250
Thermal Insulation Excellent (0.033 W/m·K) Poor Moderate
Installation Time 1-2 days per house 2-4 weeks 3-6 weeks
Fire Resistance Class A Class A Class A
Cost Efficiency 30% cheaper High labor cost High material cost

Construction site photographs

Installation Guidelines

  1. Foundation Preparation – Ensure a level base.
  2. Panel Alignment – Use laser level for precision.
  3. Mechanical Fixing – Screws/anchors every 400mm.
  4. Joint Treatment – Seal with elastic mortar.
  5. Surface Finishing – Paint, tiles, or cladding.

Certifications & Compliance

  • ISO 9001, CE, SGS, ASTM, EN standards.
  • Green Building Certifications (LEED, BREEAM).

 FAQs

Q: Can it be used in seismic zones?

Yes – Flexible EPS core absorbs vibrations.

Q: How long does it last?

50+ years with proper maintenance.

Conclusion

The EPS Cement Sandwich Panel is a revolutionary building material that combines lightweight strength, energy efficiency, and rapid construction. It is ideal for modern, sustainable, and cost-effective projects.
