Hospital/School Exclusive! Lightweight Non-Asbestos Partition Board – Anti-Mildew and Antibacterial Respiratory Health Wall

Product Introduction

Our Fireproof Energy-Saving Lightweight Partition Wall Panel is an advanced EPS Cement Sandwich Panel designed for modern construction needs. Combining lightweight structure, superior fire resistance, thermal insulation, and soundproofing, this panel is ideal for Qatar’s demanding climate and building standards. Made from high-quality expanded polystyrene (EPS) core and cement-based surfaces, it ensures durability, ease of installation, and eco-friendliness—perfect for residential, commercial, and industrial projects.

Product Specifications

Parameter Details
Material EPS Core + Cement Fiber Surface
Dimensions 2440mm (H) × 610mm (W)
Thickness Options 50mm / 75mm / 100mm (Customizable)
Weight 25–40 kg/m² (Lightweight)
Fire Rating A2 Fireproof (Non-combustible)
Thermal Conductivity 0.045–0.065 W/m·K (Excellent Insulation)
Sound Insulation Up to 40–45 dB Reduction
Load Capacity Vertical: ≥85 kN/m²; Horizontal: ≥25 kN/m²
Water Resistance Moisture-Proof, Anti-Corrosion
Installation Dry Construction, Quick & Easy

Key Advantages

  1. Fireproof & Safe – A2-grade fire resistance ensures compliance with strict safety regulations.
  2. Energy Efficient – Superior thermal insulation reduces cooling/heating costs in Qatar’s climate.
  3. Lightweight & Strong – 1/10 the weight of concrete yet maintains high load-bearing capacity.
  4. Easy Installation – Modular design saves time and labor costs (no heavy machinery needed).
  5. Soundproofing – Reduces noise transmission for quiet, comfortable interiors.
  6. Eco-Friendly – No toxic materials, recyclable, and reduces construction waste.

Applications

  • Commercial Buildings – Offices, hotels, shopping malls.
  • Residential Projects – Partition walls, ceilings, prefab homes.
  • Industrial Facilities – Warehouses, factories, cleanrooms.
  • Healthcare & Education – Hospitals, schools (hygienic & noise-controlled).
  • ✈ Infrastructure – Airports, metro stations (fast installation).

Comparison vs. Traditional Materials

Feature EPS Sandwich Panel Brick Wall Concrete Panel
Weight (kg/m²) 15-25 180-220 200-250
Thermal Insulation Excellent (0.033 W/m·K) Poor Moderate
Installation Time 1-2 days per house 2-4 weeks 3-6 weeks
Fire Resistance Class A Class A Class A
Cost Efficiency 30% cheaper High labor cost High material cost

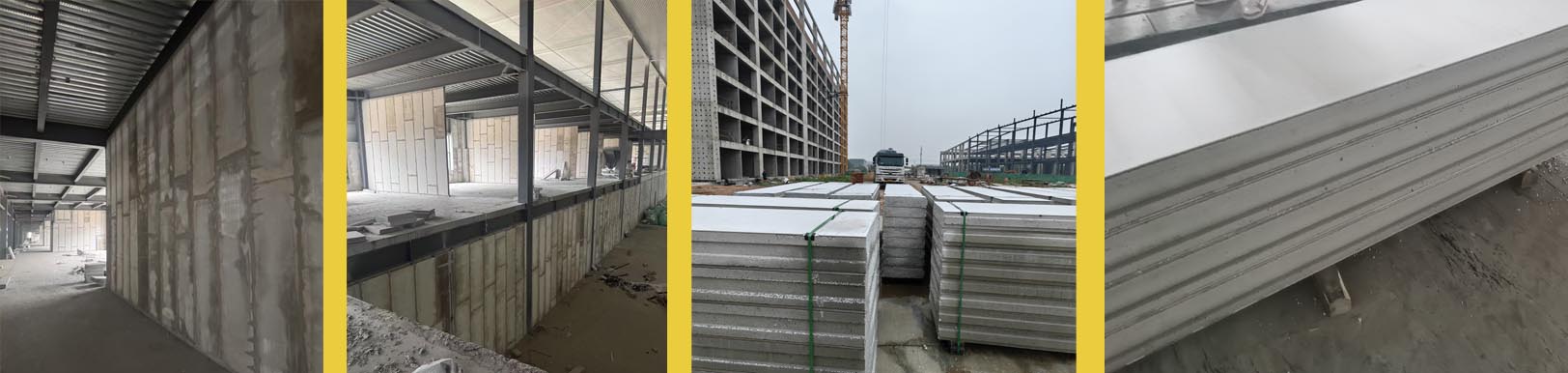

Construction site photographs

Installation Guidelines

  1. Foundation Preparation – Ensure a level base.
  2. Panel Alignment – Use laser level for precision.
  3. Mechanical Fixing – Screws/anchors every 400mm.
  4. Joint Treatment – Seal with elastic mortar.
  5. Surface Finishing – Paint, tiles, or cladding.

Certifications & Compliance

  • ISO 9001, CE, SGS, ASTM, EN standards.
  • Green Building Certifications (LEED, BREEAM).

FAQs

Q: Can it be used in seismic zones?

Yes – Flexible EPS core absorbs vibrations.

Q: How long does it last?

50+ years with proper maintenance.

Conclusion

The EPS Cement Sandwich Panel is a revolutionary building material that combines lightweight strength, energy efficiency, and rapid construction. It is ideal for modern, sustainable, and cost-effective projects.
